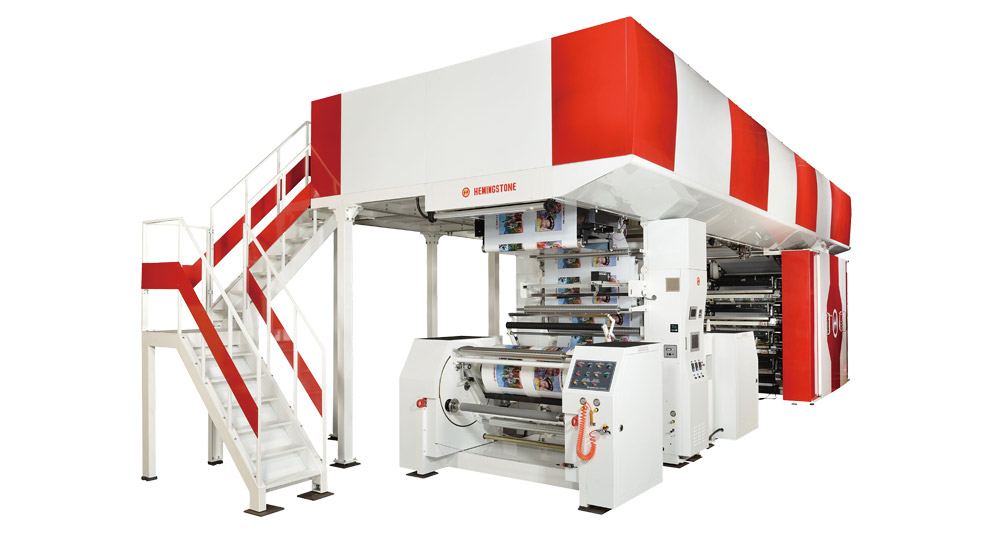

Computerized servo controlled central impression flexographic printing machine, with anilox and printing sleeves systems.
型号: HM-1208CIE-SS
特色
Non-Stop Unwind.
Non-Stop Rewind.
Automatic tension control.
Computerized servo motors for automatic positioning control, via touch screen operations for
precise positioning.
Plate and anilox sleeves systems.
System memory storage for printing jobs.
Network Remote Connection.
Need Help?
Please send your inquiry to your local subsidiary or use our contact form.
加入询问函
规格
| Model | HM-1206CI-SS | HM-1406CI-SS | HM-1606CI-SS | HM-1208CI-SS | HM-1408CI-SS | HM-1608CI-SS |
| Printing Width(mm) | 1100 | 1310 | 1510 | 1110 | 1310 | 1510 |
| Film Width(mm) | 1250 | 1450 | 1650 | 1250 | 1450 | 1650 |
| No. Of Colors | 6 | 6 | 6 | 8 | 8 | 8 |
| Printing Repeat(mm) | 370~800 | 400~800 | 420~800 | 370~800 | 400~800 | 420~800 |
| Production Speed(m/min.) | 50~350 | 50~350 | 50~350 | 50~350 | 50~350 | 50~350 |
| Max. Heater(kW) | 151 | 151 | 151 | 151 | 151 | 151 |
| Main Motor(kW) | 7.5 | 7.5 | 7.5 | 11 | 11 | 11 |
| Power Required(kW) | 219.5 | 219.5 | 219.5 | 223 | 223 | 223 |
| M/C Dimensions L(m) W(m) H(m) | 13.3 | 13.3 | 13.3 | 13.3 | 13.3 | 13.3 |
| 5.1 | 7.1 | 9.1 | 5.1 | 7.1 | 9.1 | |
| 4.6 | 4.6 | 4.6 | 5.1 | 5.1 | 5.1 | |
| Air Compressor(hp) Not Included | 5 | 5 | 5 | 5 | 5 | 5 |
| Water Chiller(hp) Not Included | 10 | 10 | 10 | 10 | 10 | 10 |
