HEMINGSTONE MACHINERY CO., LTD.

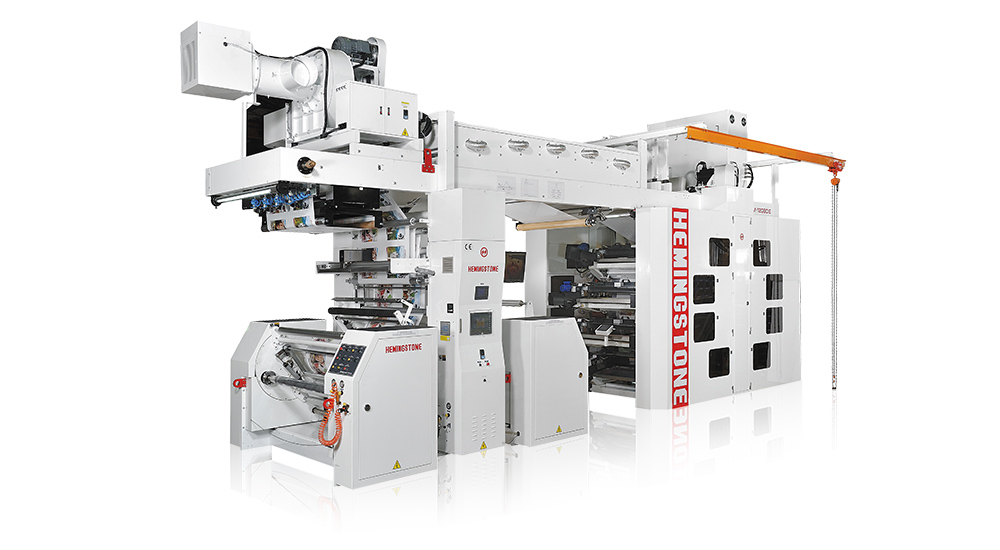

Computerized servo controlled central impression flexographic printing machine, with anilox and printing sleeves systems.

Modèle: CIE-SS (Printing Sleeves and Anilox Sleeves System)

FONCTIONNALITÉS

Non-Stop Unwind.

Non-Stop Rewind.

Automatic tension control.

Computerized servo motors for automatic positioning control, via touch screen operations for precise positioning.

Plate and anilox sleeves systems.

System memory storage for printing jobs.

Network Remote Connection.

Besoin d’aide?

Envoyez s'il vous plaît votre demande à votre filiale locale ou utilisez notre formulaire de contact.

CARACTÉRISTIQUES

Model	HM-1206CI-SS	HM-1406CI-SS	HM-1606CI-SS	HM-1208CI-SS	HM-1408CI-SS	HM-1608CI-SS
Printing Width(mm)	1100	1310	1510	1110	1310	1510
Film Width(mm)	1250	1450	1650	1250	1450	1650
No. Of Colors	6	6	6	8	8	8
Printing Repeat(mm)	370~800	400~800	420~800	370~800	400~800	420~800
Production Speed(m/min.)	50~350	50~350	50~350	50~350	50~350	50~350
Max. Heater(kW)	151	151	151	151	151	151
Main Motor(kW)	7.5	7.5	7.5	11	11	11
Power Required(kW)	219.5	219.5	219.5	223	223	223
M/C Dimensions L(m) W(m) H(m)	13.3	13.3	13.3	13.3	13.3	13.3
	5.1	7.1	9.1	5.1	7.1	9.1
	4.6	4.6	4.6	5.1	5.1	5.1
Air Compressor(hp) Not Included	5	5	5	5	5	5
Water Chiller(hp) Not Included	10	10	10	10	10	10
