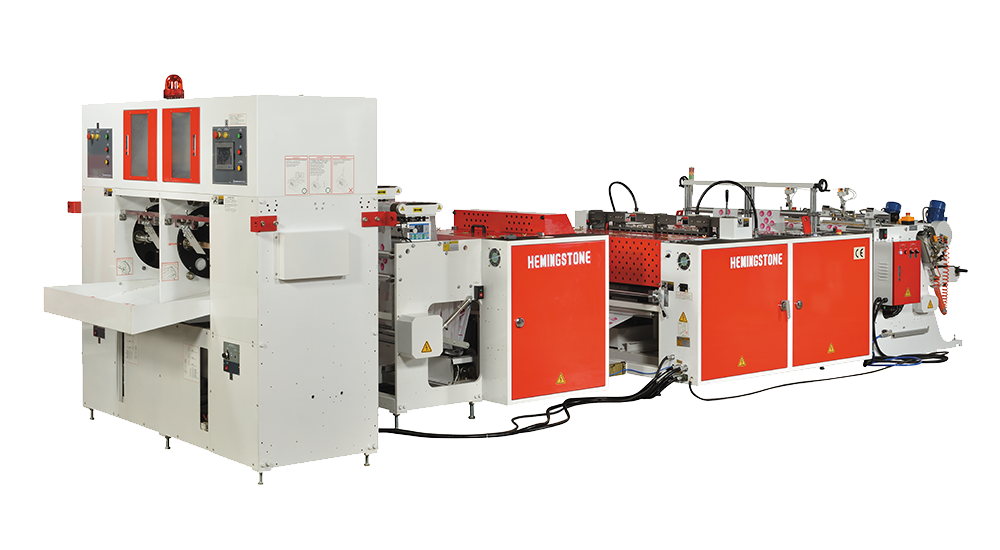

Two-Line Independent T-shirt Bag On Roll Making Machine with Core
Model: HM-990TR2C
FINISHED PRODUCTS
Vegetable Bag On Roll
T-shirt Bag On Roll
FEATURES
Two-line independent high speed fully automatic T-shirt and vegetable bag on roll making machine.
Two photocells.
Specialized servo driven magnetic rotary mechanism ensures extreme precision in cutouts at minimal waste produced.
For PE, RECYCLED, BIO film.
Need Help?
Please send your inquiry to your local subsidiary or use our contact form.
Product Inquiry
SPECIFICATIONS
| Model | HM-990TR2C | |
| Film width (max.mm) | 300 x 2 | |
| Bag width (mm) MIN-MAX. | T-SHIRT BAG/VEGETABLE BAG | 150-300 x 2 LINES |
| Bag length (mm) | T-SHIRT BAG/VEGETABLE BAG | 300-700MM |
| Thickness of film (mm total) | T-SHIRT BAG |
0.08-0.16mm LDPE 0.032-0.12mm HDPE |
| Production speed (cycle/min.max.) | 220 | |
| Film line speed (m/min/max.) | 110 | |
| Speed for changing the roll (times/max.) | WITH CORE | 4 |
| Production of roll |
Roll width (mm) (min~max.) |
150-300 x 2 |
|
Roll diameter (mm) (mm max.) |
170 | |
| Power required (kw) | 15 | |
| Air compressor (HP) not including | 7.5 | |
| Paper core size | O.D. (mm) / Core thickness (mm) | 35.5 / 2.5 |
| Core lengths (mm) | 200 / 300 | |
| Machine dimensions | 7.6M(L) x 2.42M(W) x 2.0M(H) | |
