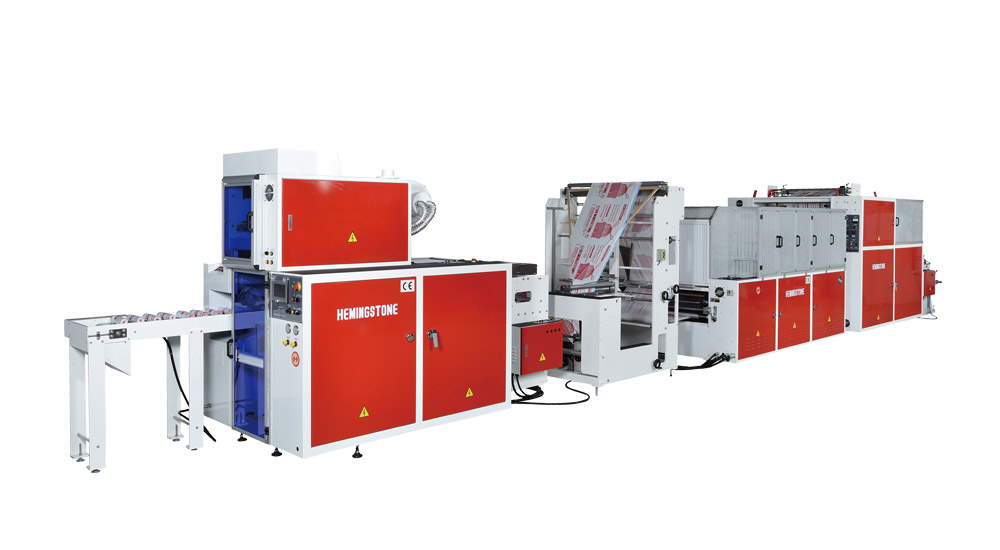

High Speed Draw Tape Garbage Bag Making Machine with Bag-on-Roll
High Speed Draw Tape Garbage Bag Making Machine with Bag-on-Roll
Model: HM-1000MSR+IL
HM-1000MSR+IL
FINISHED PRODUCTS
Poly Draw Bag

Poly Draw Bag

Perforated

Perforated

Overlapped

Overlapped

FEATURES
This is a HIGH SPEED DRAW TAPE GARBAGE BAG MAKING MACHINE WITH BAG-ON-ROLL. Design uses 2 sets of servo motors to take up the film and 4 sets of servo motors to enable non-stop film feeding for main machine to complete the production. Increases production capacity.
This multi-function machine makes both draw tape garbage bag and bottom sealing bag on roll.
High speed servo-driven system designed to produce polydraw garbage bag-on-roll.
With hot air sealing for non-stop and stable sealing line at the top folded area.
Servo-driven shuttle system creates momentary dwell time for sealing without slowing down or stopping film feeding.
User-friendly touch screen control system
Optional: Labeling machine; Automatic polydraw changing and welding system.
Need Help?
Please send your inquiry to your local subsidiary or use our contact form.
Product Inquiry
Product Inquiry
left
left
left
THE SEMICIRCLE PUNCHING UNIT
Film is taken up by servo motor and the design is non-stop punching. Operator can set length for high speed punching controlled by photo cell during production runs.
HOT AIR SEALING UNIT
The design on this unit seals the top with hot air. Continuous sealing increases productivity
FULLY AUTOMATIC REWINDING MACHINE FOR OVERLAP & PERFORATION BAG-ON-ROLL WITHOUT CORE (AUTOMATIC CHANGING)
Coreless winding of film rolls.
Alarm system for auto stop.
Automatic jam detection system.
Automatic reset of film roll transfer.
Four servo motors and one AC inverter motor.
SPECIFICATIONS
Model HM-1000MSR+IL HM-1250MSR+IL
Bag Sealing Size Film Unwind Width(mm) 1000 1150
Film Diameter(mm) 1000 1000
Bag Size Width(mm) Max. 1000 Max. 1000
Length(mm) Max. 900 Max. 1100
Production speed (pcs/min.) Max. 260 Max. 240
Film Thickness (one layer) LD/LLDPE - 0.02-0.045MM
HDPE – 0.015-0.035MM
LD/LLDPE - 0.02-0.045MM
HDPE – 0.015-0.035MM
Roll Changes Per Minute Max. 15
Max. 10 (with label)
Max. 15
Max. 10 (with label)
Production of Rolls Draw Tape Film Width (mm) 100 100
Draw Tape Film Diameter (mm) 600 600
Without Core Roll Width(mm) 300 300
Roll Dia.(mm) 100 100
Power required 25 25
Machine Dimensions L(m) 14 14
W(m) 2 2.4
H(m) 2 2
