峰明机械有限公司

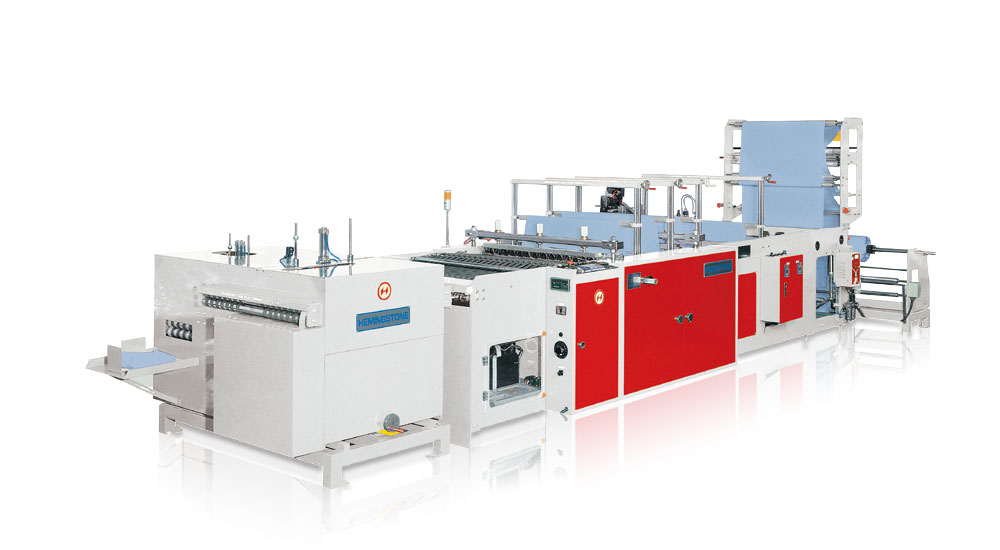

Heavy Duty High-Speed Automatic Special Draw Tape Welding Machine

型号: HM-1000R-SV/1250R-SV

成品

拉绳式垃圾袋

特色

This is a special machine for manufacturing Draw Tape Garbage bags from the reel to finished article in one fully automatic process with pre-sealing equipment. It is a multi-function automatically controlled machine for top folded gusseted bags. Two types of transmission are available-mechanical or servo-drive, each has its own merits.

PDF 下载

Need Help?

Please send your inquiry to your local subsidiary or use our contact form.

加入询问函

DRAW TYPE SLITTER

This slitter is specially designed for use with the Draw Tape Bag making machine and reduces the reel change time, doubles the usage time and increases production.

FOLDING MACHINE

The Folding Machine can be connected to the Draw Tape Garbage Bag Machine. The bags are then folded three times in order to reduce the finished bag size so that the folded bags can then be packed in quantities into one large bag.
Adjustments to the folding size is controlled by Photo Cell and pneumatics thereby saving on labour costs.

规格

型号		HM-1000R-SV	HM-1250R-SV
制袋尺寸(毫米)	寬	max.700	max.900
	长	max.950	max.1200
	底折	up to 65	up to 65
最大生产速度(下/分钟)		max.75	max.70
厚度(毫米)		0.015~0.05	0.015~0.05
电热(千瓦)		6.0	7.2
电力需求(千瓦)		9KW	10KW
机械尺寸	长(米)	7.0	7.0
	宽(米)	1.75	2.00
	高(米)	1.85	1.85
机械重量(公斤)		1000	2000
空压需求(客户自备)(马力)		5	5
