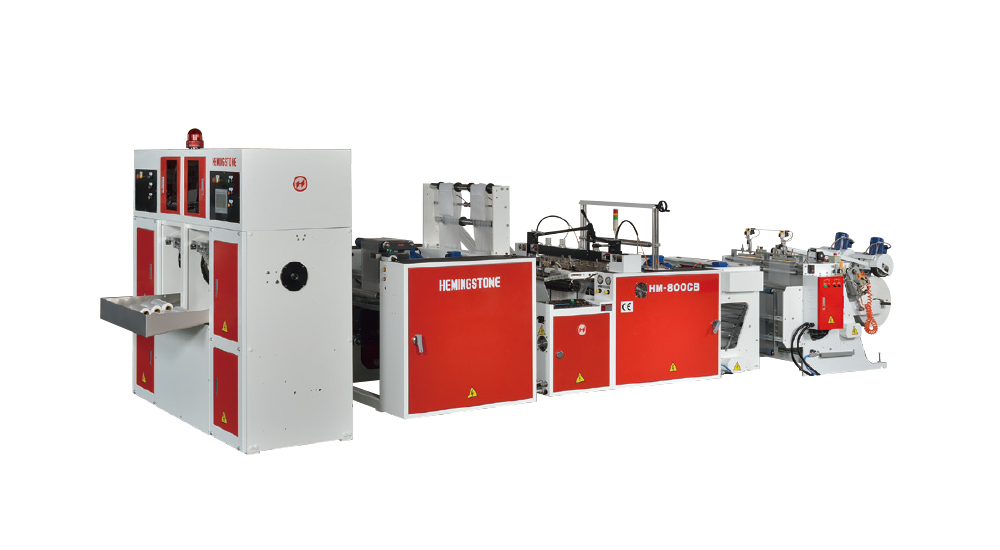

双线底封式八折袋蔬菜连卷
型号: HM-800HCB/HM-800CB
特色
双通道、双伺服、双电眼
最快速度：每分钟230下
线独立计数控制、独立换卷
封线到点断线距离恒定，不因速度变化而改变
采吹风式张力，无拉力封口，封线牢固
可制作蔬菜袋、带有边摺的底封袋八与摺袋
规格
| Model | Bag Size | Thickness for vegetable bag & bottom sealing with gusset bag(min~mix)mm | Thickness for star sealing bag(min~max)mm | Speed(pcs/min) | Line Speed(m/min) | Speed for changing the roll(max) | Production of roll | Power Required | Air comperessor not including(hp) | Machine dimensions | ||||
| Width(mm) | Length(mm) | Roll width(mm)(min-max) | Roll diameter(mm max) | L | W | H | ||||||||
| HM-800HCB | 110~350 x 2 lines | 0.02~0.15 | 0.02~0.15 | 0.02~0.12 | 300 | 135 | 4 | 110~350 x 2 | 200 | 7 | 7.6 | 9 | 2.4 | 2.1 |
| HM-1000TR2C | 110~350 x 2 lines | 0.02~0.15 | 0.02~0.15 | 0.02~0.12 | 230 | 100 | 4 | 110~350 x 2 | 200 | 7 | 7.6 | 9 | 2.4 | 2.1 |
