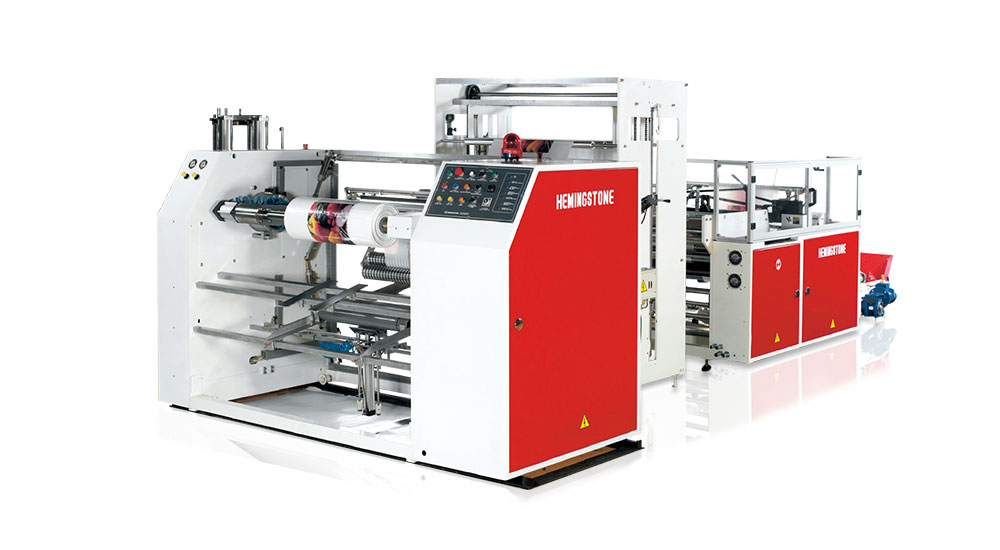

High Speed Perforation Printing Bag-on-Roll with Big Core Making Machine & Photo Cell
High Speed Perforation Printing Bag-on-Roll with Big Core Making Machine & Photo Cell
Model: HM-1000MR+BC
HM-1000MR+BC
FINISHED PRODUCTS
Table Cloth

Table Cloth

Bottom Sealing Bag

Bottom Sealing Bag

FEATURES
High speed perforation printed bag on roll with big core making machine, synchronic transmission by 4 servo motor control system, providing stable production speed.
Fully automatic electrical control system.
Independent temperature control for up and down sealing knife, no need to change the sealing knife whenever bottom sealing bag or double sealing bag is required.
Sealing knife and perforation knife move simultaneously.
Production of printed bags and plain bags, average production speed is 120 m/min, 240 cycles/min.
Production of star seal bags, garbage bags, vegetable bags, table cloths, and laundry bags.
Suitable materials include HDPE, LDPE, LLDPE and recycled material.
Need Help?
Please send your inquiry to your local subsidiary or use our contact form.
Product Inquiry
Product Inquiry
left
REWIND UNIT SYSTEM (FOR BIG CORE ONLY)
Double rewinding shaft, automatic changing rewind function.
Product width:300mm~800mm.
Inner core diameter:2.5”~6” (optional)
SPECIFICATIONS
Model HM-1000MR+BC
Bag Sealing Size Film Unwind Width(mm) 900
Film Diameter(mm) 800
Bag Size (mm) Width
900
Length 300~2000
Production Speed pcs/min 200
Lines Speed Without Core(m)
-
With Core(m) 100
Thickness of Film (Total mm) 0.02~0.2
Speed for Changing the Roll 3
Production of Rolls Without Core Roll Width(mm)
-
Roll Diameter(mm) -
With Core Roll Width(mm)
800
Roll Diameter(mm) 300
Machine Dimensions L(m) 6.5
W(m) 2.8
H(m) 2.1
Machine Weight(kg) 4000
Air Compressor(not included) 5
