Drawtape Piece-by-Piece with Auto Folding Unit
Drawtape Piece-by-Piece with Auto Folding Unit

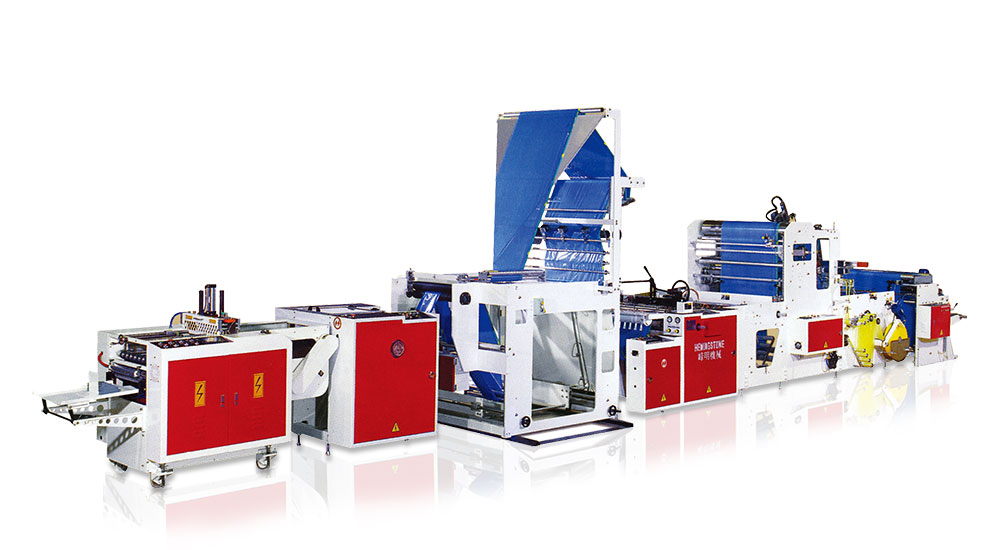

Model: HM-1000SR+TF/1250SR+TF
HM-1000SR+TF/1250SR+TF
FINISHED PRODUCTS
Folded Poly Draw Bag

Folded Poly Draw Bag

FEATURES
High speed servo-driven system designed to produce polydraw garbages.
With hot air sealing for non-stop and stable sealing line at the top folded area.
User-friendly touch screen control system
Special designed folding unit for piece by piece polydraw bags.
Need Help?
Please send your inquiry to your local subsidiary or use our contact form.
Product Inquiry
Product Inquiry
left
HM-1000SR+TF / HM-1250SR+TF
Individual bags are folded twice vertically and twice horizontally after perforation and side sealing. Bags are conveyed automatically to collecting table in final phase.
SPECIFICATIONS
Model HM-1000SR+TF HM-1250SR+TF
Bag Sealing Size Film Unwind Width(mm) 1050 1050
Film Diameter(mm) 1000 1000
Bag Size Width(mm) Max. 1000 Max. 1000
Length(mm) Max. 1000 Max. 1000
Production speed (m/min.) Max. 85 Max. 85
Thickness of Film (Total mm) 0.015~0.05 0.015~0.05
Production of Rolls Draw Tape Film Width (mm) 100 100
Draw Tape Film Diameter (mm) 600 600
Total Folded(times) 3 3
Power required 11 12
Machine Dimensions L(m) 16 16
W(m) 2.35 2.5
H(m) 3.55 3.55
Machine Weight(kg) 3000 4500
Air Compressor(not included)(hp) 7.5 7.5
